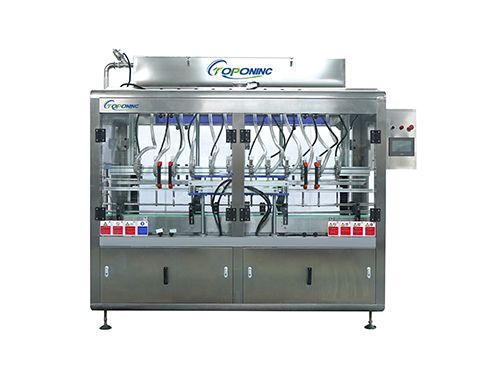

The TOPON-FMDG1215 12-head tracking filler is a highly efficient, fully automatic liquid filling machine designed for large-scale production lines, suitable for industries such as beverages, condiments, daily chemicals, and pharmaceuticals. Featuring 12 filling heads operating in parallel, the machine boasts a capacity of up to 2,000 bottles per hour and supports a wide filling range of 100-5,000ml. Combined with an intelligent control system and GMP-compliant design, it significantly improves production efficiency and product consistency, meeting the scale and flexibility needs of medium- and large-scale enterprises.

1. Industrial-Grade Reliability and Efficiency

Top-tier Hardware Configuration:

Core components from leading brands (PLC/touch screen: Xinjie; solenoid valve: AirTac; cylinder: Conison; electrical components: Delixi) ensure long-term stable operation with minimal failure rates.

Upgraded power: 3kW/380V high-efficiency motor compatible with 0.6–0.8MPa air supply, easily handling high-load production.

2. Hygienic, Safety, and Easy Maintenance

All 304 Stainless Steel Contact System:

All material-contacting parts are made of food-grade 304 stainless steel, corrosion-resistant and easy to clean, meeting FDA and GMP hygiene standards.

The modular quick-release design eliminates hidden corners and supports CIP cleaning, reducing the risk of cross-contamination.

3. High-Precision Intelligent Filling

Pneumatic Precision Filling Technology

The filling valve is pneumatically controlled with an accuracy of ≤±1%, eliminating dripping and stringing (patented nozzle technology).

Intelligent photoelectric sensing: Automatic filling when bottles are present, stopping filling when empty, and automatic liquid level replenishment, eliminating manual intervention.

Flexible parameter adjustment

Filling volume (100-5000ml) and speed (800-2000 bottles/hour) can be adjusted with one click via the human-machine interface to adapt to the production pace of various varieties.

4. Strong Compatibility and Scalability

Seamless Bottle Shape Switching:

Tool-free quick adjustment mechanism accommodates various container sizes, including round, square, and special-shaped bottles, without the need for part replacement.

Modular Production Line Integration:

Capping, labeling, and case packing equipment can be linked together to support customized production combinations, offering easy maintenance and flexible upgrades.

5. Strict Compliance Assurance

GMP Fully Sealed Filling:

The closed process eliminates external contamination and meets the certification requirements of industries such as pharmaceuticals and high-end food.

The TOPON-FMDG1215 boasts 12 parallel filling heads and a high-efficiency production capacity of 2,000 bottles per hour. Through its intelligent control and top-tier hardware, it offers the following:

✅ Increases production capacity by 300%: Meeting the demands of large-volume order delivery

✅ Reduces overall costs: Reduces labor reliance and minimizes material loss

✅ Ensures compliance and safety: GMP-sealed design and all-stainless steel construction

✅ Flexible production switching: Change bottle formats within 10 minutes, supporting small-batch production of multiple varieties

This is a strategically placed machine for large food factories, pharmaceutical companies, and daily chemical companies to upgrade their automated production.
