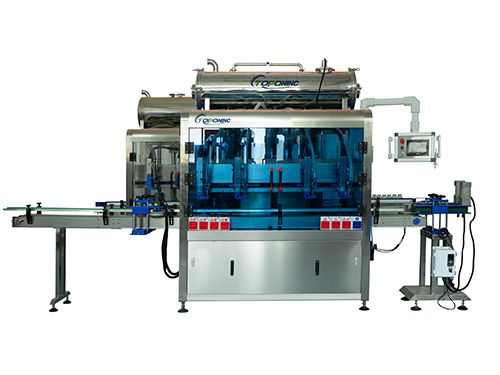

The TOPON-FMFG415 four-head tracking filler is a highly efficient, intelligent, fully automatic liquid filling machine designed for the food, beverage, daily chemical, and pharmaceutical industries. Featuring a modular structure, it combines high-precision filling technology with an intelligent control system to rapidly fill a wide range of bottle sizes from 100-5000ml, with a maximum capacity of 800 bottles per hour. Its GMP-compliant, sealed operation and all-stainless steel contact materials ensure production safety and product quality, making it an ideal choice for improving efficiency and reducing costs in modern production lines.

1. Superior Performance and Reliability

Top-tier Core Configuration:

Key components are all from leading international and domestic brands (PLC/touch screen: Xinjie; solenoid valve: AirTac; cylinder: Conison; electrical components: Delixi), ensuring low failure rates, stable operation, and long life.

Power System: 2kW/380V high-efficiency motor, compatible with a 0.6–0.8MPa air supply, offers low energy consumption and fast response.

2. Hygienic, Safety, and Easy Maintenance

All 304 Stainless Steel Contact Materials:

All material-contacting parts are constructed of 304 stainless steel, offering corrosion resistance, acid and alkali resistance, and meeting food and pharmaceutical-grade hygiene requirements.

The modular design allows for easy assembly and disassembly, and the seamless structure facilitates thorough cleaning, eliminating the risk of cross-contamination.

3. Intelligent Precision Filling

High-Precision Pneumatic Filling System

The filling valve is pneumatically controlled with an accuracy of ≤±1%, eliminating dripping and stringing (patented nozzle technology).

Intelligent photoelectric sensing: Automatically fills when a bottle is present, stops filling when no bottle is present, and automatically replenishes the liquid level, eliminating manual intervention.

Flexible Parameter Adjustment

Filling volume (100-5000ml) and filling speed (100-800 bottles/hour) can be quickly configured via the human-machine interface to adapt to varying production schedules.

4. Efficient Compatibility and Scalability

Quick Bottle Changeover:

Tool-free part replacement design accommodates a variety of bottle shapes and specifications (round, square, and special-shaped bottles), allowing for seamless transitions between production tasks.

Modular Combination Architecture:

Supports integration with capping machines, labeling machines, and other equipment, allowing flexible expansion of production lines based on process requirements and facilitating maintenance.

5. Compliance Certification Assurance

GMP Compliance:

The fully sealed filling process eliminates external contamination, meeting the stringent production standards of industries such as pharmaceuticals and high-end food.

project	parameter
Number of filling heads	4 heads
Capacity range	100–800 bottles/hour
Filling capacity	500-5000ml
Filling accuracy	≤±0.3%
Power requirements	380V 60Hz
Rated power	2kW
Working air pressure	0.6–0.8MPa

part	brand
PLC controller	Xinjie
touchscreen	Xinjie
solenoid valve	AirTac
cylinder	Cornishen
Touch screen/four-horsepower switch	Delixi
Material contact material	304 stainless steel

TOPON-FMDG415 focuses on high precision, high compatibility, and intelligence. Through top-tier hardware configuration and user-friendly design, it provides customers with stable and efficient filling solutions, significantly improving production line flexibility and product compliance. It is the preferred equipment for companies pursuing quality and efficiency.
