model:TOPON-FM015
Application Industry:Food, daily chemicals, agriculture, etc.

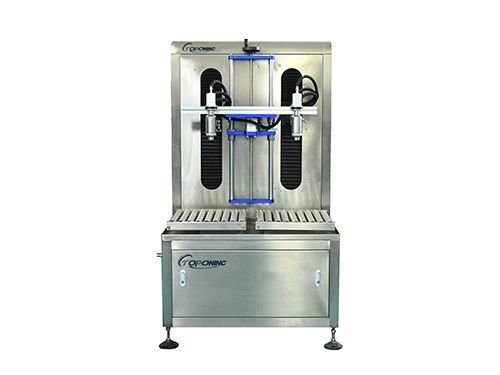

The single-head filling machine is a precision filling device designed specifically for emulsions, pastes, and other fluids, integrating efficient production with intelligent control. Leveraging a high-precision servo system and advanced sensing technology, it precisely adjusts filling volume and speed, effectively replacing manual operations, significantly reducing labor intensity and improving the overall efficiency of the production line. With its compact design, intuitive user interface, and modern aesthetic, the machine is widely applicable to small and medium-sized enterprises and diverse production scenarios in industries such as daily chemicals, food, and pharmaceuticals.
1. Ultra-High Filling Accuracy
Supports industry-leading accuracy of ±1g within 100g and ±1% above 100g.
Customized proofing is available for special materials, suitable for complex materials such as high viscosity and those containing particles.
2. Intelligent and Efficient Production
Production capacity reaches 500-800 bottles/hour. The servo motor drives the filling pump with stepless speed adjustment.
The closed-loop stepper motor conveyor operates smoothly, reducing spillage caused by bottle sway.
3. Wide Applicability
Compatible with bottle heights from 80-380mm and bottle diameters from 16-50mm, one-touch adjustment allows for quick changeovers.
The 304 stainless steel storage bin with a U-shaped bottom design ensures thorough, residue-free discharge, supporting frequent material changes.
4. Upgraded Core Components
Filling pump assembly: 316L stainless steel pump body with PEEK wear-resistant gears for corrosion and wear resistance, extending service life by 50%.
Fiber optic sensing system: Internationally branded, highly sensitive sensors with a 0.1-second response time ensure precise bottle positioning.
5. User-Friendly Design
The machine's compact size saves 30% workshop space. Touchscreen operation allows new employees to quickly learn the system in just 10 minutes.
The 304 material storage bin supports CIP cleaning, reducing maintenance costs by 40%.
6. Stable and Energy-Saving Operation
Power consumption is only approximately 2.5 kW (220V), and gas consumption is 0.6 MPa/40 L/min, reducing overall energy consumption by 25%.
Key components are shock-resistant and moisture-resistant, enabling continuous operation in high-temperature and high-humidity environments.
Filling weight | 100g-5000g(customizable) |
Applicable bottle height | 80-380 mm(customizable) |
Applicable bottle diameter | 16-50 mm(customizable) |
Production speed | 500-800 bottles/hour (customizable) |
Weighing error | ≤1%(customizable) |
Liquid inlet pressure | ≤1%(customizable) |
power supply | AC220V±10%，50HZ(customizable) |
Power consumption | 2.5 KW |
Remark | Can be used in conjunction with capping, labeling and other machines to form a production line |
| Support customization | |
✅ Multi-purpose machine: From skincare to seasonings and sauces, one machine handles a wide range of product categories.
✅ Save labor and materials: Accuracy error is less than 1g, saving over 50,000 yuan in raw material costs annually.
✅ 10-year durability: Engineering-grade PEEK gears + 316L stainless steel, capable of 20 hours of daily operation.
Applicable applications: Bottled products such as creams, lotions, serums, shampoos, soy sauces, jams, and disinfectants
