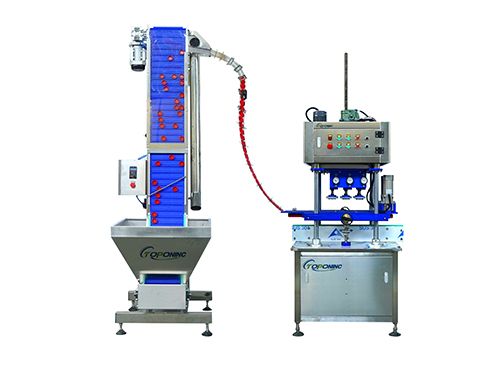

The TOPON-FMCP106 all-in-one capping machine innovatively integrates a fully automatic capping machine with a six-wheel precision capping machine, enabling unmanned operation throughout the entire process, from cap sorting and application to tightening. Utilizing a 304 stainless steel structure and an industrial-grade control system, the machine utilizes three-stage capping calibration technology to ensure 100% cap sealing accuracy, with a maximum processing speed of 8,000 bottles per hour (customizable). Designed specifically for high-GMP industries such as pharmaceuticals, food, and cosmetics, it supports rapid changeovers between Ø15-70mm caps and Ø20-100mm bottles, significantly enhancing production line automation.

1. Ultra-High-Speed Collaborative Production

Automatic Capping Without Caps: The capping machine uses intelligent sensing to feed caps, eliminating empty bottles from the bottle circulation.

Three-Level Precision Capping Control: Six sets of polyurethane rubbing wheels provide three-stage progressive tightening (calibration → pre-tightening → locking), achieving a yield rate of ≥99.9%.

Intelligent Linkage: Synchronous start and stop with photoelectric sensing eliminates empty or missing caps.

2. Industrial-Grade Reliable Design

All contact parts are made of 304 stainless steel, resistant to corrosion and wear, and meet GMP cleanliness standards.

Solid and Reliable Core Components:

✅ Variable-Speed Motor (Capping Machine)

✅ Anti-Fatigue Polyurethane Rubbing Wheels (Capping Machine)

3. Quick Adjustment, Broad Compatibility

Easily Adjustable System:

✅ Easily Adjustable Height/Width of the Bottle Clamping Belt

✅ Quickly Adjustable Height/Width of the Rubbing Wheel Assembly

4. Minimalistic Intelligent Control

Dual Independent Operation, Mechanical Button Interface, Failure Rate <0.1%

Covering machine
Production speed	8000 covers/hour (customizable upgrade)
power supply	AC380V±10%, 50HZ (customizable)
Power consumption	0.12KW
Air pressure	0.5~0.7Mpa (need to be prepared by yourself)
power consumption	300L/min

Capping machine
Production speed	8000 bottles/hour (customizable)
Applicable bottle caps	Ø15~70mm(customizable)
Applicable bottle height	Ø100~320mm(customizable)
power supply	AC380V±10%，50HZ(customizable)
Power consumption	1.25 KW
Remark	Can be used in conjunction with filling, labeling and other machines to form a production line
Support customization

✅ High-performance production capacity: 8,000 bottles/hour stable output (not theoretical)

✅ Zero-leakage sealing: Three-stage capping ensures precision

✅ 1-hour payback: Replaces 12 workers in a single shift, with a payback period of 3 months
