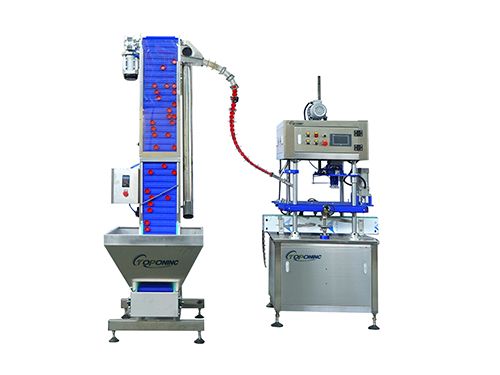

The TOPON-FMCP104 capping machine features an innovative split-air supply design, intelligently linking a pneumatic capping machine (self-provided air supply required) with a fully electric four-wheel capping machine. Designed for high-precision small vials (ampoules, reagent tubes, and serum bottles) sized 30-120mm, the capping machine delivers caps at high speed and precision, while the capping machine utilizes polyurethane rollers to achieve airless tightening at a rate of 100 bottles per minute (6,000 bottles per hour). The coordinated error rate between the two machines is less than 0.01%. The entire machine is constructed of 304 stainless steel and is GMP-certified. It supports quick changeovers for different caps and bottle shapes within 10 minutes, providing a zero-compromise sealing solution for pharmaceutical and cosmetics laboratories.

1. Purely electric precision capping

✅ Servo motor precisely controls capping torque

✅ Zero air pressure dependence, eliminating seal defects caused by air source fluctuations

✅ Polyurethane wheels prevent slipping and shattering, with a pass rate of ≥99%

2. Dual independent overshoot

Capping machine: Pneumatic capping speed of 6,000 caps/hour (customizable)

Capping machine: Electric capping speed of 100 bottles/minute (bottle height customizable)

Photoelectric interlock: Stops in 0.2 seconds when fully capped, automatically operates when caps are insufficient

3. Quick adjustment, broad compatibility

Easily adjustable system:

✅ Easily adjustable bottle clamp height and width

✅ Quickly adjustable roller assembly height and width

4. Ultra-durable, precision-grade design

All 304 stainless steel body: Rounded and polished corners, compatible with 121°C steam sterilization

Polyurethane rollers: Acid and alkali resistant

5. Minimalist intelligent control

Dual independent operation, mechanical key interface, failure rate <0.1%

Covering machine
Production speed	6000 covers/hour (customizable upgrade)
power supply	AC380V±10%, 50HZ (customizable)
Power consumption	0.12KW
Air pressure	0.5~0.7Mpa (need to be prepared by yourself)
power consumption	300L/min

Capping machine
Production speed	6000 bottles/hour (customizable)
Applicable bottle caps	Ø15~70mm(customizable)
Applicable bottle height	Ø15~70mm(customizable)
power supply	AC380V±10%，50HZ(customizable)
Power consumption	1.25 KW
Remark	Can be used in conjunction with filling, labeling and other machines to form a production line
Support customization

✅ Flexible Deployment: The capping machine is fully electric, suitable for workshops and laboratories without an air supply.

✅ Cost Optimization: Only the capping machine uses air, reducing air compressor power by 50%.

✅ Fault Isolation: Air line faults do not affect capping, increasing equipment utilization by 30%.
